spfx-fast-serve with SPFx 1.13 support

26 October 2021 Sergei-Sergeev SharePoint Framework, SPFx



Last week Microsoft announced SPFx 1.13. Corresponding spfx-fast-serve modules were also updated to support the latest SPFx. A few notable changes were introduced for spfx-fast-serve as well.

Deprecation of local workbench

The local workbench is deprecated in SPFx 1.13. The corresponding features were also removed from spfx-fast-serve. As a result, serve setting "open" was removed. Originally the setting meant "open local workbench". Now if you wish to open any URL after the "serve", you should use "openUrl" setting instead.

ESLint support was changed

In the previous version, spfx-fast-serve tried to automatically detect the ESLint usage. In SPFx 1.13 it works differently. For performance reasons by default now ESLint is disabled even if you have ESLint support in your SPFx solution. Now you have to explicitly add a new setting called "eslint" (true or false) to the "serve" options. When "eslint: true" in your spfx-fast-serve config, it will add eslint-webpack-plugin to the webpack configuration. By default it uses "lintDirtyModulesOnly: true". It means that ESLint will check only files you changed and not the whole project (otherwise it might be very slow).

If you don't have ESLint fully configured for your SPFx project, you can follow this guide.

When the default settings for eslint don't work for you, you can always use Webpack extensibility to configure the eslint-webpack-plugin for your project.

NGROK serve plugin

That's a new webpack plugin from "spfx-fast-serve-helpers" module, aimed to make mobile testing a bit easier.

The problem

This is something completely new introduced for SPFx 1.13 and onwards. SPFx 1.13 added a new type of extension called Adaptive Cards. Mostly it's used inside Viva Connection Dashboards and mobile experiences. In the hosted workbench you can test adaptive cards. But what if you want to continue local development and see how it looks like inside your Viva MS Team's mobile app? Of course, you can use mobile view in dev tools, however on the actual device, it might be different. Or what if you have a bug, which is reproducible on a mobile device only?

With spfx-fast-serve you can create a kind of proxy between your locally running dev server and Viva app, loading development javascript. You can use the ngrok tool as such a proxy and the NgrokServePlugin from spfx-fast-serve. This approach works also for Teams Tabs if you wish to test them on mobile.

How to configure

Scaffold a new project

You can use existing or just scaffold a brand new SPFx project with an adaptive card extension. Make sure to set Do you want to allow the tenant admin the choice of being able to deploy the solution to all sites immediately without running any feature deployment or adding apps in sites?: Yes.

Run ngrok

Ngrok service will act as a proxy to our locally hosted javascript sources. So run ngrok first:

ngrok http https://localhost:4321

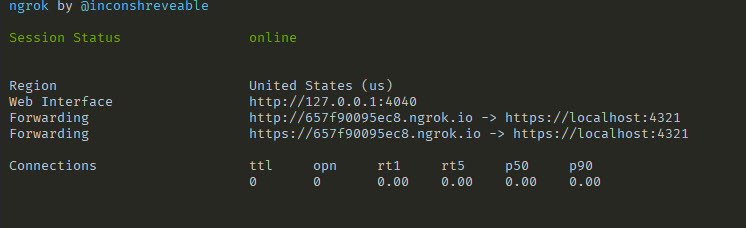

You will see something like below:

Take a note of ngrok host URL and save it, we'll need it later. In my case, it will be "657f90095ec8.ngrok.io".

Update configuration

Open config/serve.json and change configuration -"port": 443, "hostname": "657f90095ec8.ngrok.io". This is the whole configuration (for the default scaffolded project):

{
  "$schema": "https://developer.microsoft.com/json-schemas/core-build/serve.schema.json",
  "port": 443,
  "hostname": "657f90095ec8.ngrok.io",
  "https": true,
  "initialPage": "https://localhost:5432/workbench",
  "api": {
    "port": 5432,
    "entryPath": "node_modules/@microsoft/sp-webpart-workbench/lib/api/"
  }
}

Now open fast-serve/webpack.extend.js and add NgrokServePlugin plugin (use the same host as before for the "host" plugin parameter):

const { NgrokServePlugin } = require("spfx-fast-serve-helpers");

// you can add your project related webpack configuration here, it will be merged using webpack-merge module
// i.e. plugins: [new webpack.Plugin()]
const webpackConfig = {
  plugins: [new NgrokServePlugin({ host: "657f90095ec8.ngrok.io" })]
}

Why webpack plugin and not a configuration setting? What if you want to run ngrok from javascript using API? In that case, the URL will be different every time (unless you use the paid account of course). What if in the future I will have to introduce additional parameters? The last argument is that I don't expect this feature will be used frequently. That's why the webpack plugin.

Build, package and deploy it

Now you should build and package. The trick is to use dev build and not production (without --ship parameters). So run:

gulp bundle
gulp package-solution

Go to the tenant app catalog and globally deploy the app.

Now, if you add the webpart or adaptive card to any page, it will request javascript sources from ngrok URL, which is mapped to your localhost server.

Add to the Viva Dashboard and test it

Inside the solution folder run

npm run serve

Go to your Viva Dashboard and add the adaptive card. The card should be available and fully functional using a desktop browser. Usually the dashboard URL is <your sharepoint home site url>/SitePages/Dashboard.aspx.

If it works inside Dashboard, you can open the mobile app and see it in the mobile dashboard as well! Change the code and your changes will be reflected in both mobile and desktop dashboards.

The below video demonstrates how it works:

You can use this approach not only for adaptive cards but actually for any SPFx component. For example, you can see how your Teams tab looks like on the mobile Teams experience and update it live!
